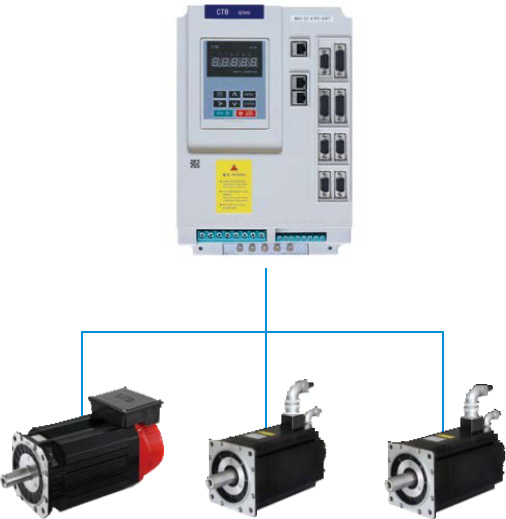

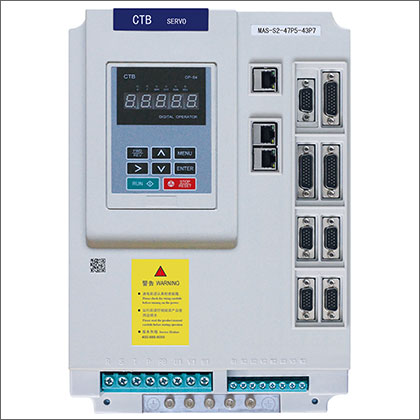

S2 Triple axis servo drive

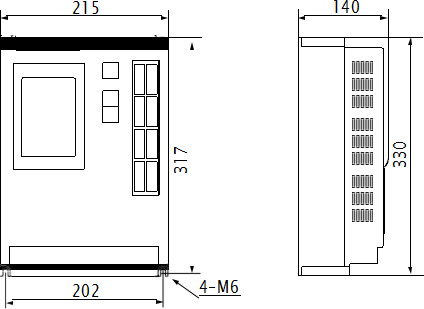

◆ Shape and mounting size
◆ Standard specification
Power：Three Phase 50/60Hz 380/400/440V
|
Model |
Main drive unit(S axis) | Auxiliary drive unit(X axis/Z axis) | Brake resistance (Model X quantity) | |||
| Rated power(kW) | Rated current(A) | Rated power(kW) | Rated current(A) | axis quantity | ||
| MAS-S2-41P5-4XXX | 1.5 | 4 | 0.75/1.5 | 2/4 | 2 | B200W300R×1 |
| MAS-S2-42P2-4XXX | 2.2 | 5 | 0.75/1.5/2.2 | 2/4/4 | 2 | B300W150R×1 |
| MAS-S2-43P7-4XXX | 3.7 | 8 | 1.5/2.2/3.7 1P5/2P2/3P7 |
4/5/8 | 2 | B600W50R×1 |
| MAS-S2-45P5-4XXX | 5.5 | 13 | 2 | B800W40R×1 | ||
| MAS-S2-47P5-4XXX | 7.5 | 17 | 2 | B1000W32R×1 | ||
| MAS-S2-4011-4XXX | 11 | 25 | 2 | B600W50R×2 | ||
Note: The power of X axis and Z axis, user can choose according to application requirements.
◆ Performance index:
● Main drive unit：S axis，1.5～11KW
● Auxiliary drive unit：double axis(X/Z)，0.75～3.7KW
● Drive motor：AC induction servo motor/PMSM
● S axis function： forward/reversal rotation，accurate stop，rigid tapping, C-axis
● X/Z axis function：speed control，positioning control，zero return
● Communication interface：RS232 RS485 Ether net
● Bus Interface：MECHATROLINK ETHER CAT PROFINET
● Axial-control signal: analog, impulse output, I/O, encoder output
● Relay output：3 channels(S/X/Z axis drive failure)
● The hand wheel/external encoder interface: 1 channel incremental pulse input
● The motor encoder interface：3channel CTB BUS
● Optional configuration: touch screen, the hand wheel, external encoder
● Control function: independent control of each axis, multi-axis joint control
● Suitable CNC control system: Syntec, Siemens 808, domestic system

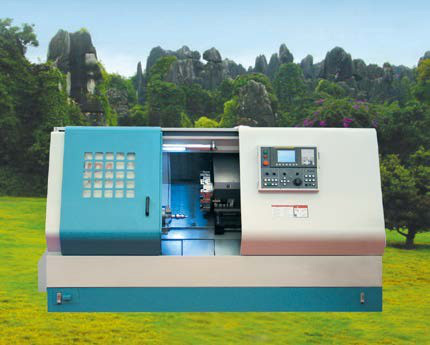

● Applying area: CNC lathe, lathe and milling working center.etc

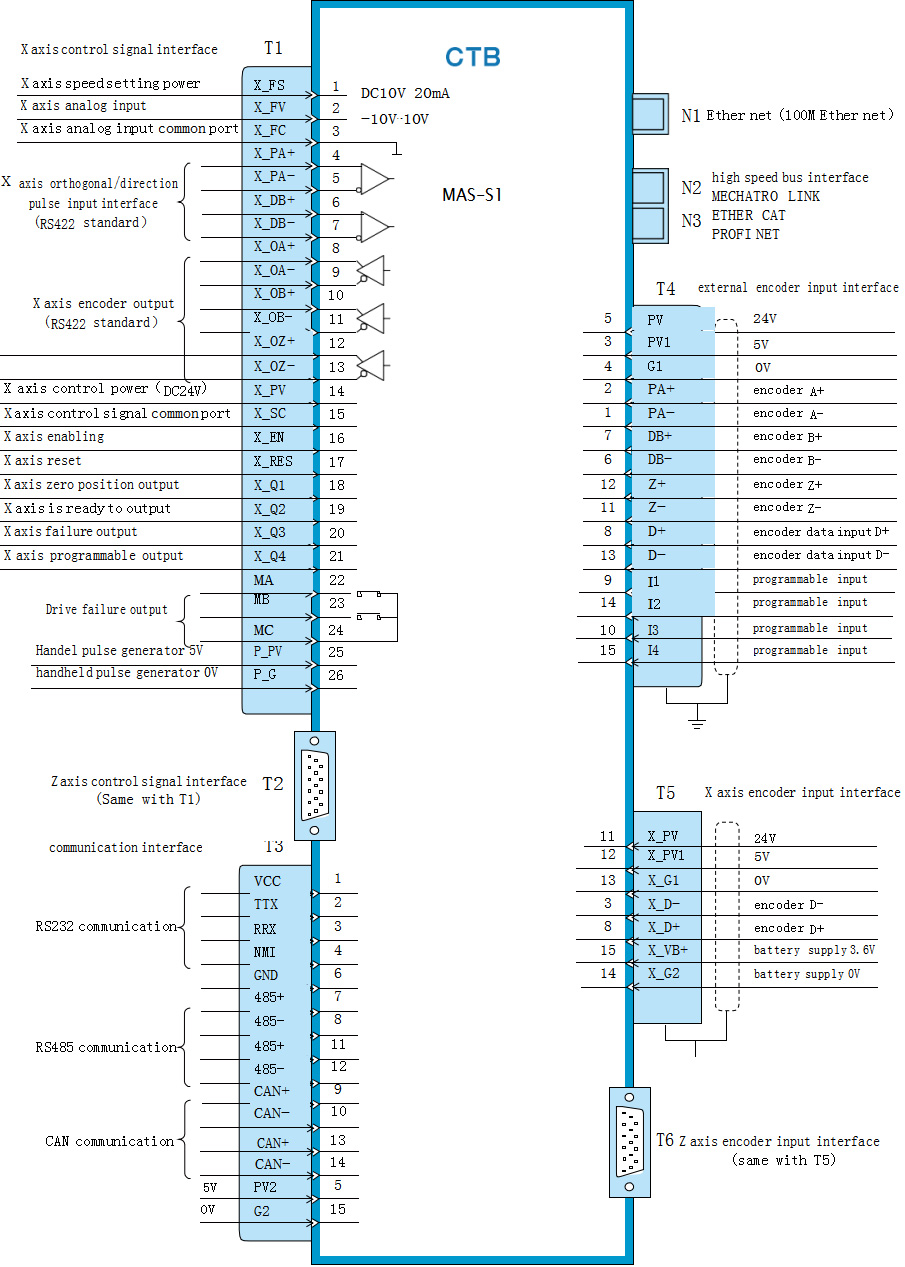

◆ MAS-S1standard wiring diagram
