D3 Triple axis servo drive

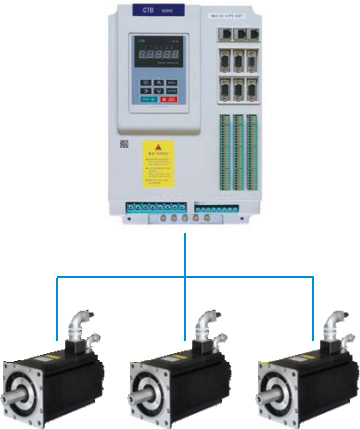

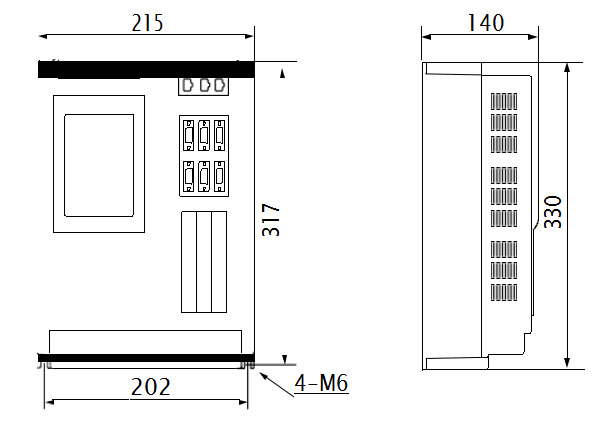

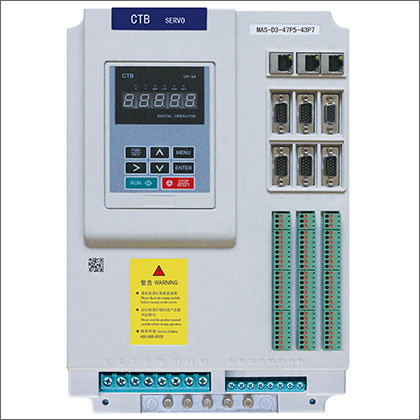

◆ Shape and mounting size
◆ Standard specification
Power：Three Phase 50/60Hz 380/400/440V
| Model | X axis | Y axis | Z axis | Standard brake resistance Model×quantity | |||
| Rated power (kW) |
Rated current (A) |
Rated power (kW) |
Rated current (A) |
Rated power (kW) |
Rated current (A) |
||
| MAS-D3-41P5-XXXX | 1.5 | 4 | 0.75/1.5 | 2/4 | 0.75/1.5 | 2/4 | B200W300R×1 |
| MAS-D3-42P2-XXXX | 2.2 | 5 | 0.75/1.5/2.2 | 2/4/5 | 0.75/1.5/2.2 | 2/4/5 | B300W150R×1 |
| MAS-D3-43P7-XXXX | 3.7 | 8 | 1.5/2.2/3.7 | 4/5/8 | 1.5/2.2/3.7 | 4/5/8 | B600W50R×1 |
| MAS-D3-45P5-XXXX | 5.5 | 13 | B800W40R×1 | ||||
| MAS-D3-47P5-XXXX | 7.5 | 17 | B1000W32R×1 | ||||
| MAS-D3-4011-XXXX | 11 | 25 | B600W50R×2 | ||||
◆ Performance index:
● X axis drive power： 1.5～11KW
● Z axis drive power： 0.75～3.7KW
● Drive motor：AC induction servo motor/PMSM
● Axis function: positioning control, speed control torque control
● Communication interface：RS232 RS485 CAN Ether net
● Bus Interface：MECHATROLINK ETHER CAT PROFINET
● The hand wheel/external encoder interface: 1 channel incremental pulse/resolver
● The motor encoder interface：3 channel CTB BUS
● Optional configuration: touch screen, the hand wheel, external encoder
● Programmable I/O:40 input/32 output
● Programmable relay output: 1 channel
● Built-in programmable motion control module(Pmotion),ladder diagram programming
● Main applications: press machine, rotary cutting lathe, robot, etc.

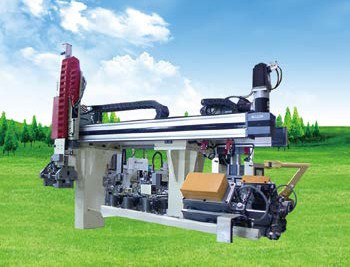

● Main applications: truss type manipulator, three axis robot, small automatic line

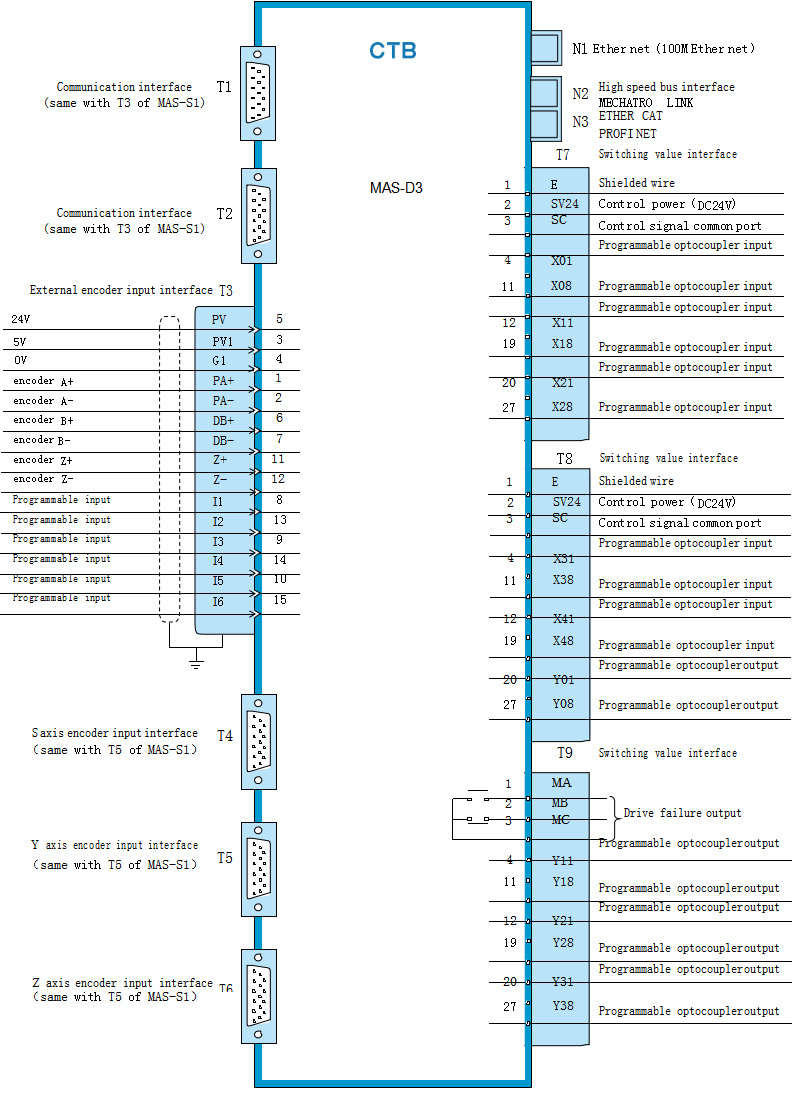

◆ MAS-D2 standard wiring diagram
