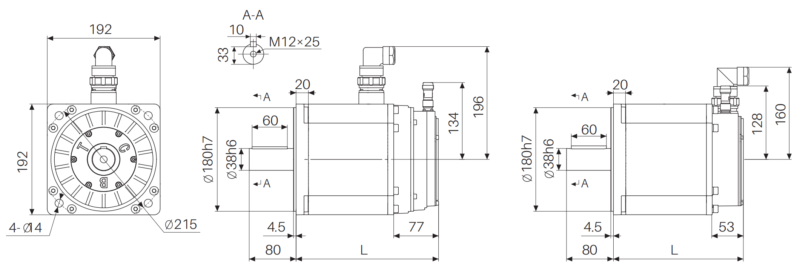

◆ Shape and installation size
◆ S18-192 Middle Interia 192×192mm
Voltage Class: 400V Max. Speed: 1500rpm Poles: 8p Cooling Method: Natural Cooling
| Motor Model | Rated Torque (N.m) |
Rated Speed (r/min) |
Rated Currenet (A) |
Rated Power (kW) |
Back EMF Constant Ke (V/krpm) |
Rotary Interia (With Brake) (×10-4kg.m2) |
Weight (With Brake) (kg) |
L (With Brake) (mm) |
| S18-192-416T0X15-5XX | 16 | 1500 | 4.9 | 2.5 | 207.4 | 77.9(81.3) | 19.4(26.5) | 222（243） |
| S18-192-424T0X15-5XX | 24 | 1500 | 7.5 | 3.8 | 201.8 | 113.2(116.6) | 24.0(31.1) | 248（269） |
| S18-192-432T0X15-5XX | 32 | 1500 | 9.5 | 5.0 | 213.0 | 148.5(151.9) | 28.7(35.8) | 274（295） |
| S18-192-440T0X15-5XX | 40 | 1500 | 11.2 | 6.3 | 224.3 | 183.8(187.2) | 33.3(40.4) | 300（321） |
| S18-192-448T0X15-5XX | 48 | 1500 | 13.8 | 7.5 | 218.7 | 219.1(222.5) | 37.8(44.9) | 326（347） |
| S18-192-456T0X15-5XX | 56 | 1500 | 17.1 | 8.8 | 206.0 | 254.4(257.8) | 42.4(49.5) | 352（373） |
◆ S18-192 Middle Interia 192×192mm
Voltage Class: 400V Max. Speed: 3000rpm Poles: 8p Cooling Method: Natural Cooling
| Motor Model | Rated Torque (N.m) |
Rated Speed (r/min) |
Rated Currenet (A) |
Rated Power (kW) |
Back EMF Constant Ke (V/krpm) |
Rotary Interia (With Brake) (×10-4kg.m2) |
Weight (With Brake) (kg) |
L (With Brake) (mm) |
| S18-192-416T0X15-5XXH | 16 | 1500 | 9.2 | 2.5 | 109.3 | 43.5(47.7) | 19.4(26.5) | 222（245） |
| S18-192-424T0X15-5XXH | 24 | 1500 | 13.4 | 3.8 | 111.6 | 62.0(66.2) | 24.0(31.1) | 248（271） |
| S18-192-432T0X15-5XXH | 32 | 1500 | 17.2 | 5.0 | 116.3 | 80.5(84.7) | 28.7(35.8) | 274（297） |
| S18-192-440T0X15-5XXH | 40 | 1500 | 22.4 | 6.3 | 113.4 | 99.0(103.2) | 33.3(40.4) | 300（323） |
| S18-192-448T0X15-5XXH | 48 | 1500 | 26.8 | 7.5 | 111.6 | 117.5(121.7) | 37.8(44.9) | 326（349） |
| S18-192-456T0X15-5XXH | 56 | 1500 | 33.0 | 8.8 | 105.8 | 136.0(140.2) | 42.4(49.5) | 352（375） |

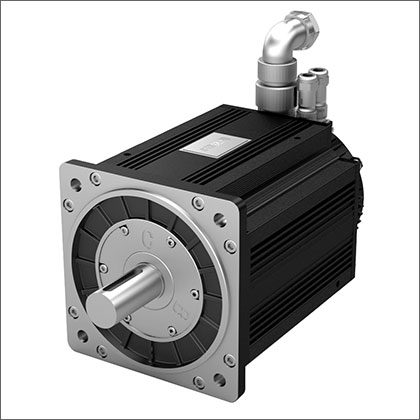

S18 series servo spindle motor, which is developed, designed and produced by CTB, is a new type of AC permanent magent synchronous servo motor with international advanced level which is making it go international. It has high performance, compact structure, good shape and high cost-performance, which is widely used in every field of industrial automatic control.
Various Products Items
◆Torque range: 1～245N.m, overload ability 3～5 times.
◆Rated speed: 1500～3000rpm, non-stand design available
◆Voltage class: 200V, 400V
◆Speed sensor: with built-in encoder(incremental encoder,rotary transformer, absolute encoder, etc)W
Type Explanation (take 10n.m servo motor for example)
| Model | Name | Description | Catalog Number Explanation |
| 1 | Plant Code | S18：Plant Motor Code | S18 Series Pmsm |
| 2 | Frame Size Code | Flange Size：40~265 | 130×130 |
| 3 | Voltage Class | 2: 200V Class 4：400V Class | 400V Class |
| 4 | Torque Code | See Standard Specification Table | 10 N.m |
| 5 | Encoder Code | Code Encoder Type B：without encoder G：optical-electricity encoder(incremental) S：sin-cos encoder(2048P) R：rotary transformer(12B) A：absolute encoder(17B) |
Buit-in Absolute Encoder |
| 6 | Rated Speed Code |
Code Rated Speed r/min Code Rated Speed r/min d5 50 15 1500 |
Basic Speed：3000r/min |
| 7 | Max speed code | Max Speed：3000r/min | |
| 8 | Installation Method Code | 3：B3/ Horizontal-Mounted 5：B5/ flanged mounting 35：B35/ horizontally-flanged mounting |
Flange Mounting |
| 9 | Shaft Extention Structure Code | G：Plain Shaft J：Key Slot Shaft | Plain Shaft |
| 10 | Brake | B：with brake | with brake |
| 11 | Rotary Interia | H：Low Interia Series | Low Interia |
Applying Area
CNC Machine Tool Hydraulic Equipment Forging And Pressing Equipment Plastic Equipment Shearing Equipment Hoisting Equipment Oil Extraction Equipment Amusement Equipment Textile Equipment Papermaking Equipment Wire Cable Equipment Wood-Working Machine Printing Machine Automatic Production line Steel Production line Wiredrawing Machine Elevator Auto-Door Electrombile
