◆ Electrical Parameter
Voltage：400V Pole：6 Fan Power：30W Fan Voltage：380V
| Motor model | Rated power (kW) |
Rated torque (N.m) |
Rated current (A) |
Rated frequency （Hz） |
Rated speed (r/min) |
Maximum speed (r/min) |
Anti- electromotive (V/krpm) |
Rotational inertia (kg.m2) |
| P18-41P1AX10-20XX | 1.1 | 10.5 | 2.0 | 50 | 1000 | 2000 | 252 | 0.0027 |
| P18-41P6AX15-30XX | 1.6 | 10.2 | 2.9 | 75 | 1500 | 3000 | 169 | 0.0027 |
| P18-42P0AX20-40XX | 2.0 | 9.6 | 3.6 | 100 | 2000 | 4000 | 126 | 0.0027 |
| P18-42P8AX30-60XX | 2.8 | 8.9 | 5.2 | 150 | 3000 | 6000 | 85 | 0.0027 |

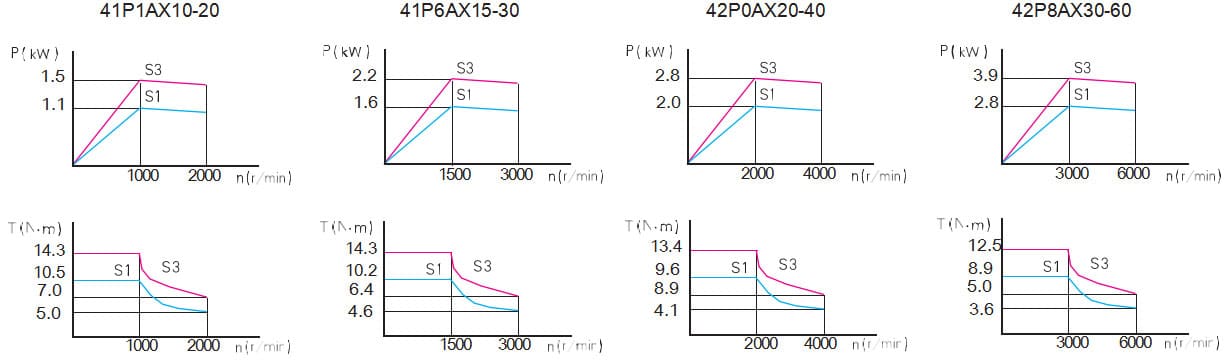

◆ Characteristic Curve
◆ Performance Index
| ITEM | INDEX |
| ENCODER (OPTIONAL) | MG-128(MAGNETIC) |
| CE9-23B(ABSOLUTE) | |
| RZ12-1024(RESOLVER) | |
| SC-2048(SIN-COS) | |
| SHAFT TYPE | G:WITHOUT KEYSLOT |
| J:WITH KEYSLOT | |
| MOUNTING TYPE | B3 B5 B35 |
| WEIGHT/GROSS WEIGHT |
18 / 25kg |
| PROTECTION CLASS | IP55 |
| INSULATION CLASS | F CLASS |
| RATED TEMERATURE RISE |
90 K |
| VIBRATION CLASS | S |
| NOISE | ≤70dB(A) |
| ENVIRONMENT TEMPERATURE |
-15～45℃ |
| ENVIRONMENT HUMIDITY |
≤95%RH |

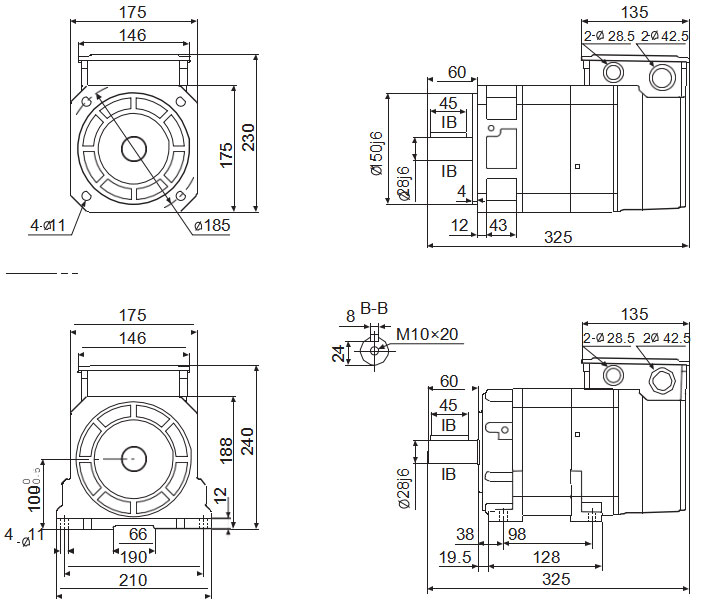

◆ Shape And Installation Size

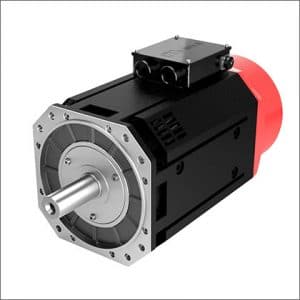

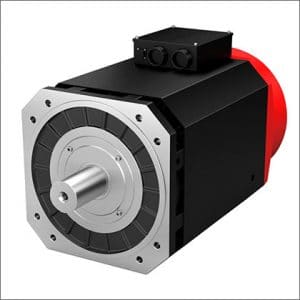

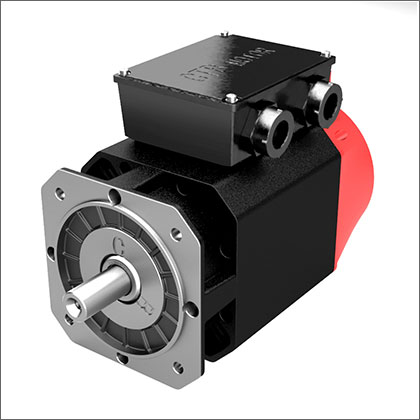

Product Presentation
Model description
| NO | Name | Description | Model Meaning |
|
1 |
Product Series |
P18：P18 series permanent magnet synchronous servo motor |
Made By CTB |
|
2 |
Voltage Class |
2：200V class 4：400V class | 400V Class |
|
3 |
Power Code |
see standard configuration form |
7.5kW |
|
4 |
Motor Frame Code |
Motor frame flande size mm Motor frame flange size mm A： 175×175 E： 320×320 B： 205×205 F： 380×380 C： 265×265 G： 480×480 D： 300×300 H： 580×580 |
B Motor Frame |
|
5 |
Encoder Type |
Code Encoder Type B： Wthout Encoder C： Magnetic Encoder 128T、256T G： Incremental Encoder 1024P、 2500P、6000P、8192P R： Resolver 1024P S： Sin-cos Encoder 2048P A： Absolute Encoder 13bit、17bit 、23bit |
Built-in Magnetic Encoder |
|
6 |
Rated Speed Code |
Code speed r/min Code speed r/min 05： 500 45： 4500 07： 750 60： 6000 10： 1000 80： 8000 15： 1500 90： 9000 20： 2000 A0： 10000 30： 3000 A2： 12000 40： 4000 A5： 15000 |
Rated Speed：1500 r/min |
|
7 |
Maximum Speed Code |
Maximum Speed：3000 r/min |
|
|
8 |
Mounting Method Code |
3：Horizontally-mounting 5：Flanged-mounting 35：Horizontally-Flanged |
Flange Mounting |
|
9 |
Motor Shaft Type |
G： Without keyslot J： With keyslot |
Without Keyslot |
